| OMM4 Series Multi Mounting High Efficiency Motor OMM4-160L0-04P* 15kW 400/690V B3/B35/B5/V1 |
Data Sheet

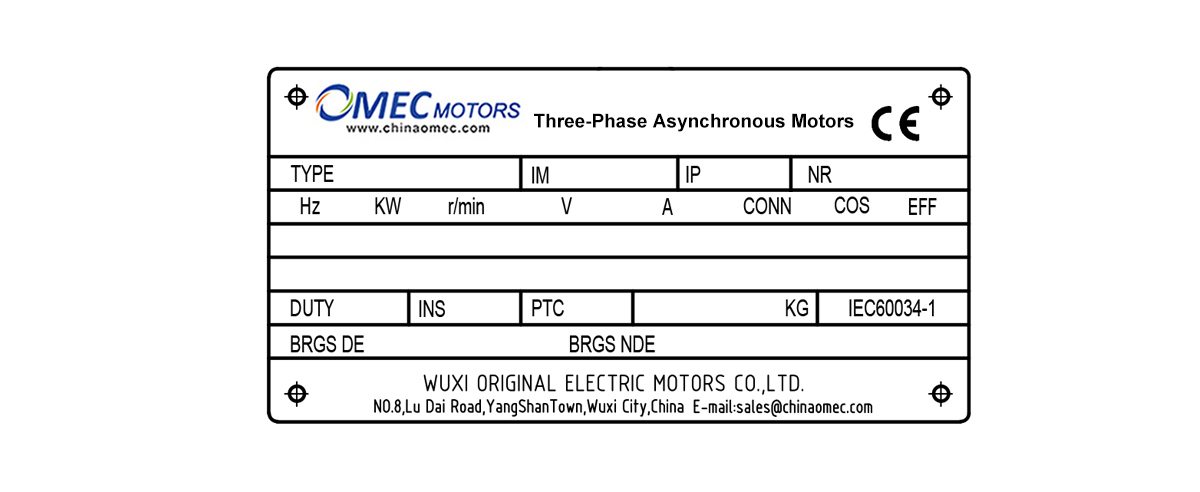

nameplate parameter table
External view of installation method
| WUXI ORIGINAL MECHANICAL & ELECTRICAL Co.,Ltd |
 |
| Data Sheet |
No. |
OMEC-3928 |
| Three Phase Induction Motor |
Drawing No |
OMM4-160L0-02~08P* B3 |
| Type |
OMM4-160L0-04P* 15kW 400/690V 50Hz |
| Identification |
| Frame |
160 |
mm |
Insulation Class |
F |
| Outpu |
15 |
kW |
Temperature Rise |
80K |
| Frequency |
50 |
Hz |
Service Factor |
1.0 |
| Poles |
4 |
P |
Duty |
S1 |
| Rated Speed |
1465 |
Rpm |
Ambient Temperature |
-20～40°C |
| Slip |
0.58 |
% |
Altitude |
1000m |
| Rated Voltage |
400/690 |
V |
Protection Degree |
IP55 |
| Connection |
△/Y |
|
Cooling |
IC411 |
| Rated Current |
27.4/15.9
|
A |
Mounting |
IM B3/B35/B5/V1 |
| Rotor Voltage |
- |
|
Vibration |
1.8 mm/s |
| Rotor Connection |
- |
|
Approx. Weight |
153 kg |
| Rotor Current |
- |
|
Moment of Inertia |
0.1249 kg-m2 |
| Locked Rotor Current |
950 |
% |
Noise Level(Lp) |
68 |
| No Load Current |
- |
|
Direction of Rotation |
BOTH |
| Rated Torque |
97.78 |
Nm |
Starting Method |
DIRECT ON LINE |
| Locked Rotor Torque |
200 |
% |
Coupling |
DIRECT |
| Breakdown Touque |
230 |
% |
Load Type |
- |
| Performance |
Bearing Information |
| Output |
50% |
75% |
100% |
|
DE |
NDE |
| Efficiency(%)： |
91.1 |
94.1 |
93.9 |
Bearing |
6309 C3 |
6309 C3 |
| Regreasing int(h) |
4000 |
4000 |
| Power Factor |
0.71 |
0.80 |
0.84 |
Grease amount(g) |
15 |
15 |
| Grease-PolyrexEM |
Chevron SRI-2 |
Chevron SRI-2 |
| Standards |
Notes / Accessories |
| Specification |
?IEC60034-1?? /? GB/T755 |
- |
| Test? |
?IEC60034-2?? /?? GB/T1032 |
- |
| Noise |
?IEC60034-9?? /?? GB/T10069.1 |
- |
| Vibration |
?IEC60034-14?? /?? GB/T10068 |
|
TEL：0510-83052766
Email：sales@chinaomec.com
Add：No. 8 Lu Dai Road, Yangshan Supporting Area, Wuxi Huishan Economic Development Zone
OMM4-160L0-04P*
B3/B35/B5/V1
55
50
15
1465
400/690
27.4/15.9
△/Y
0.84
93.9%
S1
F
153
6309 C3
6309 C3
